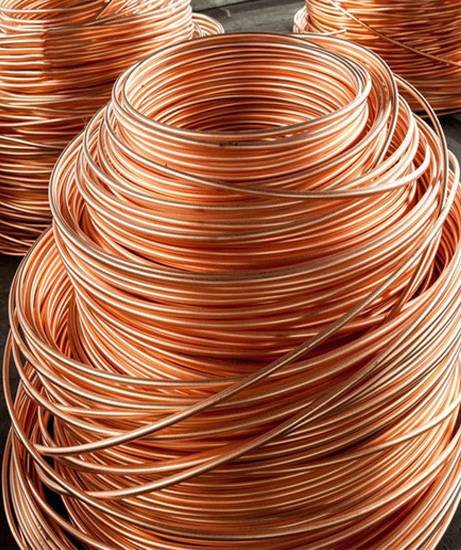

OFHC (Oxygen-Free High Conductivity) Copper Coil is engineered from highly purified copper that contains exceptionally low oxygen content, typically below 0.001%. This purity ensures outstanding electrical conductivity, making OFHC copper one of the most preferred materials in the electronics and electrical industries. The coil form enables easy transport, bending, shaping, and installation without compromising mechanical integrity. Industries choose OFHC copper coils when high reliability and minimal contamination are essential. These coils deliver high performance even in extreme environments. Their enhanced conductivity and durability ensure long service life.
Manufacturing OFHC Copper Coil begins with carefully controlled oxygen reduction processes. This involves melting electrolytic copper under inert or controlled atmospheres to eliminate oxygen and impurities. The material is subsequently cast and hot-rolled into sheets or strips, then drawn or wound into coil form. Controlled production conditions prevent unwanted inclusions that would otherwise affect conductivity. This results in a product that is exceptionally stable under thermal and electrical stress. Precision casting and continuous annealing ensure uniform grain structure. The outcome is a coil that supports efficient energy transfer.
The electrical characteristics of OFHC Copper Coil make it ideal for demanding applications requiring minimal resistance. With conductivity exceeding 101% IACS, it surpasses most commercial copper grades. Engineers appreciate this advantage, especially when designing low-loss power transmission components. Using OFHC copper also minimizes heat buildup during current flow, which further reduces energy consumption. Because of its superior conductivity, many high-frequency and precision circuits rely on it. Its performance remains consistent across temperature variations. Users benefit from stable performance in both industrial and laboratory environments.
Unlike standard copper coils, OFHC Copper Coils are resistant to hydrogen embrittlement. This is because oxygen, which causes brittleness when interacting with hydrogen, is almost completely removed. As a result, OFHC coils maintain structural and mechanical strength in atmospheres where normal copper would degrade. This characteristic is important in vacuum systems, refrigeration, and aerospace equipment. Engineers can rely on OFHC copper for high-pressure, high-stress applications. Less material fatigue translates to improved long-term reliability. Systems requiring precision bonding and joining benefit significantly from this property.
In cryogenic environments, OFHC Copper Coil demonstrates remarkable performance. Low-temperature applications such as superconducting magnets, MRI machines, and particle accelerators benefit from its uniform thermal conductivity. Ordinary copper loses thermal control at extreme cold temperatures, while OFHC copper remains predictable. This ensures more stable cooling, better efficiency, and reduced heat leaks. Research laboratories prefer OFHC coils because they minimize temperature fluctuations. The purity and microstructure make them more dependable under liquid helium or nitrogen cooling cycles.
The mechanical properties of OFHC Copper Coil provide excellent ductility and formability. Fabricators can bend, twist, and flatten these coils without significant cracking or surface defects. This makes OFHC copper preferable for manufacturing custom electrical conductors, busbars, and micro-machined components. It also supports deep drawing, welding, brazing, and intricate shaping. Strong malleability allows designers to specify exact dimensions without worrying about machining limitations. Smooth surfaces further reduce the need for post-processing. This saves time and cost during part fabrication.
Corrosion resistance is another benefit associated with OFHC Copper Coil. Because impurities are minimal, the material naturally forms a stable protective oxide layer. This reduces deterioration when exposed to atmospheric conditions, moisture, or industrial chemicals. Applications such as automotive chargers, power distribution boards, and engineered cooling systems benefit from this stability. In environments where standard copper may tarnish quickly, OFHC coils remain cleaner and more conductive for longer periods. This property contributes to long-term operational reliability.
Electronics manufacturers frequently use OFHC Copper Coil in PCB busbars, connector terminals, and precision wiring. Its unmatched purity ensures that electrical signal degradation remains minimal. OFHC copper allows optimal data transmission in high-frequency devices. This makes it ideal for telecommunications, high-speed computing, and smart industrial controllers. Engineers designing sensitive detection devices prefer it to avoid noise interference. The resulting circuits perform better with reduced heat signatures. Efficiency and reliability both increase.
| Parameter | Specification |
|---|---|
| Material Grade | OFHC Copper (C10100 / Cu-OF / UNS C10100) |
| Purity | ≥ 99.99% Copper (Cu) |
| Oxygen Content | < 0.001% (10 ppm max) |
| Electrical Conductivity | ≥ 101% IACS |
| Thermal Conductivity | ~ 390 W/m·K |
| Coil Thickness | 0.05 mm – 20 mm (custom available) |
| Coil Width | 5 mm – 1200 mm (as per requirement) |
| Inner Coil Diameter (ID) | 150 mm / 300 mm / Custom |
| Outer Coil Diameter (OD) | Up to 1000 mm (custom available) |
| Surface Finish | Bright / Mill Finish / Brush / Polished |
| Temper | Annealed (Soft), 1/4 Hard, 1/2 Hard, Full Hard |
| Standards | ASTM B152 / ASTM B187 / ASTM B133 / JIS H3100 |
| Manufacturing Form | Coil, Strip, Sheet Coil, Foil Coil |
| Packing | Wooden pallets, plastic wrap, anti-corrosion protection |
In vacuum applications, OFHC Copper Coil does not outgas or develop micro-bubbles because of its oxygen-free structure. Semiconductor manufacturing, vacuum deposition chambers, and analytical instruments rely on components that will not contaminate low-pressure systems. The coil’s purity prevents unwanted reactions that could compromise vacuum integrity. With stable metallurgical arrangement, OFHC copper remains consistent even after numerous temperature cycles. Machine performance becomes easier to predict. This increases throughput, reduces maintenance, and ensures system longevity.
The aerospace and defense sectors implement OFHC Copper Coil in high-current connectors, avionics modules, and sensitive electronic assemblies. These environments demand extremely low electrical resistance combined with stable mechanical strength. OFHC copper provides the reliability and resilience needed for mission-critical systems. Reduced impurities minimize failure points. When exposed to vibration, extreme temperature differences, or pressurized chambers, the coils continue functioning as expected. Internal equipment benefits from greater durability and predictable response time.
Medical device manufacturers trust OFHC Copper Coil in imaging systems, energy delivery units, and cryogenic medical storage equipment. In healthcare technology, signal clarity and safety are essential. OFHC copper ensures minimal electrical interference and stable electromagnetic performance. It also tolerates high sterilization temperatures. Special devices such as MRI magnets require materials with clean thermal pathways. OFHC copper satisfies these requirements without introducing contaminants. The outcome is safer and higher-precision patient diagnostics.
| Element / Property | Typical Value (%) | Notes |
|---|---|---|
| Copper (Cu) | ≥ 99.99 | High-purity base material |
| Oxygen (O) | ≤ 0.0010 | Controlled oxygen-free processing |
| Silver (Ag) | ≤ 0.0020 | Trace impurity, improves conductivity slightly |
| Lead (Pb) | ≤ 0.0005 | Limited to ensure machinability and purity |
| Iron (Fe) | ≤ 0.0007 | Maintained at very low levels |
| Nickel (Ni) | ≤ 0.0005 | Minimal trace presence |
| Arsenic (As) | ≤ 0.0005 | Controlled to prevent brittleness |
| Antimony (Sb) | ≤ 0.0005 | Limited to maintain ductility |
| Sulfur (S) | ≤ 0.0005 | Impurity must be minimized to avoid embrittlement |
| Total Impurities | ≤ 0.03 | Ensures oxygen-free high conductivity performance |
Power distribution systems use OFHC Copper Coil for energy conductors, busbars, and transformer windings. The high purity translates into maximum electrical transmission efficiency. This reduces losses, improves sustainability, and lowers operational costs. Compared to standard copper grades, OFHC coils reduce heating and allow compact conductor designs. They are suitable for systems where space and weight must be minimized. Public utilities and heavy industry both benefit from this reliability. Over time, maintenance needs decrease significantly.
OFHC Copper Coils may be supplied in annealed, half-hard, or custom tempers depending on end-use requirements. Annealed coils offer extreme flexibility for bending and forming. Half-hard coils maintain better strength while still supporting moderate shaping. Some manufacturers supply work-hardened types for special structural applications. The choice of temper impacts performance, machining characteristics, and installation method. Engineers should consider electrical load, environment, and mechanical stress when selecting the coil grade. Custom tempering allows precise balancing of strength and conductivity.
| Property | Annealed (Soft) | Half-Hard | Full-Hard | Notes |
|---|---|---|---|---|
| Ultimate Tensile Strength (MPa) | 210 – 250 | 250 – 320 | 320 – 400 | Varies based on temper and thickness |
| Yield Strength (MPa) | 70 – 100 | 150 – 220 | 280 – 350 | Higher in work-hardened states |
| Elongation (%) | 50 – 60 | 30 – 45 | 10 – 25 | Annealed is highly ductile |
| Hardness (HV) | 40 – 60 | 75 – 100 | 120 – 160 | Measured using Vickers hardness test |
| Electrical Conductivity (% IACS) | 101 | ≥ 100 | ≥ 99 | Highest in annealed condition |
| Density (g/cm³) | 8.94 | Standard copper density | ||
| Thermal Conductivity (W/m·K) | ~390 | Stable across temper grades | ||
| Modulus of Elasticity (GPa) | ~110 – 130 | Depends slightly on temper | ||
OFHC (Oxygen-Free High Conductivity) Copper Coil is made from ultra-pure copper with minimal oxygen content, ensuring maximum electrical and thermal conductivity. It is commonly used in electronics, vacuum systems, cryogenic equipment, and high-reliability applications.
Key benefits include high electrical conductivity, excellent thermal performance, superior corrosion resistance, high ductility, and low hydrogen embrittlement. These properties make it ideal for sensitive and high-performance applications.
Applications include precision electrical conductors, vacuum chambers, cryogenic systems, high-frequency circuits, medical imaging equipment, power distribution busbars, aerospace connectors, and semiconductor manufacturing equipment.
OFHC Copper Coil is typically available in annealed (soft), half-hard, and full-hard tempers. Custom tempering can also be provided to suit specific mechanical and electrical requirements.
OFHC Copper Coils generally comply with ASTM B152, ASTM B187, ASTM B133, and JIS H3100 standards. Custom specifications can be provided upon request for industrial or scientific applications.
Yes, manufacturers can provide OFHC Copper Coils in custom widths, thicknesses, inner/outer diameters, and surface finishes. Custom packing and temper options are also available to meet specific project requirements.
