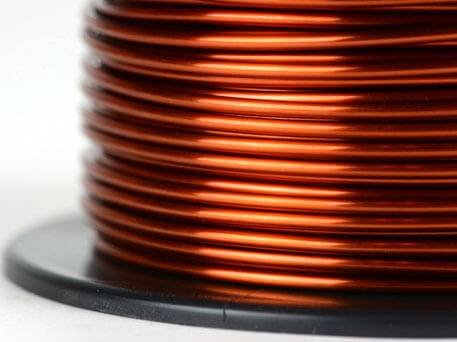

ETP Copper Coil
Manufacturer,Stockist and Exporter of ETP Copper Coil
ETP Copper Coil stands for Electrolytic Tough Pitch copper, a highly conductive form of copper widely used in electrical and thermal applications. It is produced through electrolytic refining, ensuring uniform purity and stable composition. The material contains a controlled amount of oxygen which helps improve mechanical strength and casting properties. ETP copper coils are preferred for motors, transformers, busbars, power cables, HVAC units, switch gears, and more. Manufacturing processes maintain smooth surfaces and precise dimensions, ensuring consistent electrical performance. These coils are available in different temper grades, diameters, and coil weights depending on industry needs. The outstanding conductivity of ETP copper makes it ideal for efficient energy transfer and low power loss.
ETP copper typically contains a minimum copper content of 99.90% or higher, resulting in extremely low levels of impurities. This purity is essential for applications requiring stable electrical resistance across varying loads and environments. The oxygen content is usually around 200–400 ppm, controlled to enhance ductility and performance during fabrication. The refined structure allows stress-free bending, coiling, welding, and soldering without compromising structural strength. Consistent grain distribution ensures reliable long-term electrical properties for industrial and commercial installations. The exceptional cleanliness of the material enhances corrosion resistance in regular service conditions. Overall, ETP copper coils act as a dependable conductor material for high-demand environments.
Production begins with electrolytic copper cathodes which are melted and refined in controlled furnaces. Molten copper is continuously cast into billets or slabs and then processed through hot or cold rolling mills. Rolling reduces thickness while improving mechanical strength and refining grain morphology. Once the desired thickness is achieved, the copper is drawn or slit into precise width according to coil requirements. Heat treatment may be applied to customize temper characteristics, ensuring flexibility or rigidity where necessary. Surface finishing provides a clean, oxide-free layer suitable for welding, brazing, and further coating. The final product is coiled and packaged to protect against moisture, impact, and environmental corrosion.
ETP copper is known for its exceptional electrical conductivity reaching up to 101% IACS. This means greater energy efficiency, reduced transmission loss, and superior current flow across different load levels. Its low resistivity minimizes excess heat generation, making it ideal for motor windings and transformers. Stable conductivity over time supports long-term operational reliability in power distribution and switchgear systems. ETP copper coils allow optimal performance even in environments requiring high-frequency or low-voltage systems. The material outperforms many other metals like aluminum and stainless steel in conductive applications. By maintaining superior electrical pathways, ETP copper enhances performance and product life cycles.
ETP copper coils are engineered to withstand demanding operational conditions without fatigue. Controlled oxygen levels strengthen the copper matrix, improving workability and resistance to deformation. Industrial-grade coils handle vibrations, mechanical stress, and bending during installation and service use. Their hardness levels can be tailored from soft annealed to hard drawn depending on the application. Structural integrity remains stable even under repetitive thermal cycles common in energy systems. ETP copper’s toughness ensures minimal wear when wound tightly or subjected to sustained pressure. This robustness translates to prolonged service life and reduced maintenance requirements.
Motor windings require materials with exceptional conductivity and heat dissipation properties. ETP copper coils provide low electrical resistance which supports efficient torque and rotation output. Their ductile form allows complex winding configurations in high-performance industrial motors. The coils reduce thermal build-up, extending service intervals and reducing risk of insulation breakdown. Superior elasticity ensures winding integrity even during high-speed operation and dynamic loads. With proper insulation, ETP copper coils perform reliably across AC, DC, and servo motor designs. Their adaptability makes them a preferred choice in HVAC compressors, pumps, and automation systems.
Transformers demand high conductivity coils to minimize power loss during conversion. ETP copper coils deliver excellent winding stability which helps maintain performance across phases. They support uniform magnetic flux distribution due to their consistent surface topology. Lower resistance leads to reduced heat generation which improves transformer lifespan. ETP coils handle fluctuating load cycles and continuous duty conditions effectively. They also integrate well with insulating varnishes and lamination materials for core assemblies. Such properties position ETP copper as an essential material for power distribution networks.
Copper’s superior thermal conductivity extends beyond electrical benefits. ETP copper coils rapidly distribute heat away from high-energy zones, preventing local overheating. This property is critical in power electronics, heating systems, and refrigeration units. The coils maintain stable temperatures, contributing to consistent operational efficiency. They also enhance heat exchange rates in industrial and commercial HVAC equipment. Heat dissipation performance reduces component stress, improving product longevity. Systems integrate ETP copper coils to maintain safety and performance in harsh environments.
Specification Of ETP Copper Coil
| Parameter | Specification / Range | Description |
|---|---|---|
| Copper Grade | ETP (Electrolytic Tough Pitch) – C11000 | High-conductivity copper refined through electrolytic process. |
| Copper Purity | ≥ 99.90% | Industry-standard purity suitable for electrical applications. |
| Conductivity | ≥ 101% IACS | Superior electrical conductivity for minimal power loss. |
| Oxygen Content | 200–400 ppm | Controlled oxygen to enhance mechanical strength and fabrication properties. |
| Temper Condition | Soft / Half-Hard / Hard Drawn | Available in multiple tempers based on application needs. |
| Thickness Range | 0.10 mm – 20 mm | Varies depending on design, winding, and mechanical requirements. |
| Width Range | 5 mm – 1200 mm | Custom widths available for coil and strip manufacturing. |
| Coil Weight | 5 kg – 2,000 kg | Packaging and spool size adaptable to customer needs. |
| Surface Finish | Bright / Smooth / Mill Finish | Optimized for welding, brazing, or electrical applications. |
| Standards | ASTM B152, ASTM B170, IS 191, EN Standards | Applicable manufacturing and material compliance specifications. |
| Packaging | Spool / Wooden crate / Coiled with VCI wrap | Protection against moisture, oxidation, and physical damage. |
ETP copper coils are widely used in HVAC due to their corrosion resistance and formability. Their ability to bend without cracking allows design flexibility in compact heat exchanger layouts. The coils support fluid transfer systems, ensuring smooth refrigerant movement and stability. High thermal transfer capabilities help improve cooling efficiency and energy use. Their durable structure withstands internal pressure and vibration from compressor operation. Surface cleanliness ensures reliable brazing or welding during installation and maintenance. ETP coils often serve as evaporator and condenser components in industrial cooling setups.
Renewable infrastructure increasingly relies on highly efficient conductive materials. ETP copper coils play a vital role in wind turbine motors, solar inverters, and storage systems. High conductivity ensures minimal energy loss, supporting sustainable power distribution. Their recyclable nature aligns with global environmental and circular economy initiatives. ETP copper maintains stable performance under environmental stresses such as humidity and temperature. Durability reduces downtime and waste, contributing to long-term cost savings. Such characteristics make ETP copper crucial in eco-friendly engineering solutions.
ETP copper coils are offered in various tempers suited to forming, bending, and machining. Soft annealed variants allow tight coiling without fracture, ideal for winding applications. Half-hard and hard temper grades deliver stronger profiles for structural or rigid systems. The coils accommodate welding, soldering, and brazing techniques with minimal surface preparation. Machinability supports precision cutting, punching, or extrusion for customized components. Material purity ensures compatibility with coatings, lacquers, and insulation materials. Manufacturers prefer ETP copper for automated CNC fabrication and mass production.
Chemical Properties Of ETP Copper Coil
| Element | Symbol | Typical Content (%) | Description / Notes |
|---|---|---|---|
| Copper | Cu | ≥ 99.90% | Base element ensuring high electrical and thermal conductivity. |
| Oxygen | O | 0.02 – 0.04% | Present as Cu₂O to improve casting and mechanical strength. |
| Silver | Ag | ≤ 0.003% | Trace element; minimal effect on conductivity and toughness. |
| Lead | Pb | ≤ 0.005% | Controlled impurity; excessive content may reduce ductility. |
| Iron | Fe | ≤ 0.005% | Small quantities allowed; generally maintained at very low levels. |
| Arsenic | As | ≤ 0.002% | Restricted impurity; controlled to maintain mechanical stability. |
| Other Impurities | — | ≤ 0.03% | Collective maximum limit to ensure high conductivity and purity. |
ETP copper naturally forms a thin oxide layer which protects against surface degradation. This layer shields coils from atmospheric moisture and moderate chemical exposure. In controlled environments, corrosion remains minimal, preserving conductivity and form. Copper coils maintain performance in industrial, HVAC, and electrical systems even in fluctuating environments. Surface finishes such as tin coating, varnish, or insulation further enhance protection. Resistance to oxidation prevents performance loss over extended service life. Proper storage and packaging ensure coils maintain integrity until installation.
Manufacturers adhere to international copper quality standards for performance assurance. Common specifications include ASTM B152, ASTM B170, IS 191, and EN standards depending on region. These standards regulate purity level, mechanical characteristics, dimensions, and tolerances. Compliance ensures interchangeability and compatibility with industry-specific equipment. Certified coils undergo electrical conductivity testing, tensile evaluations, and dimensional inspections. Manufacturing audits help maintain consistency and traceability across production batches. Customers benefit from reliable, repeatable performance backed by documented compliance.
Mechanical properties Properties Of ETP Copper Coil
| Property | Typical Value / Range | Unit | Description / Notes |
|---|---|---|---|
| Tensile Strength | 200 – 350 | MPa | Varies by temper; soft annealed is lower, hard drawn is higher. |
| Yield Strength | 60 – 300 | MPa | Determines material deformation under load; influenced by processing state. |
| Elongation | 10 – 40% | % | Indicates ductility; soft temper has higher elongation and formability. |
| Hardness (HV) | 45 – 110 | Vickers | Hard drawn coils are harder; annealed coils remain flexible for bending. |
| Density | 8.89 | g/cm³ | Standard copper density, stable across industrial temperature ranges. |
| Modulus of Elasticity | 110 – 130 | GPa | Supports structural durability and resistance to mechanical fatigue. |
| Melting Point | 1083 | °C | Ensures strong thermal performance and processing tolerance. |
| Thermal Conductivity | 385 – 401 | W/m·K | Superior thermal transfer helps reduce heat buildup in equipment. |
