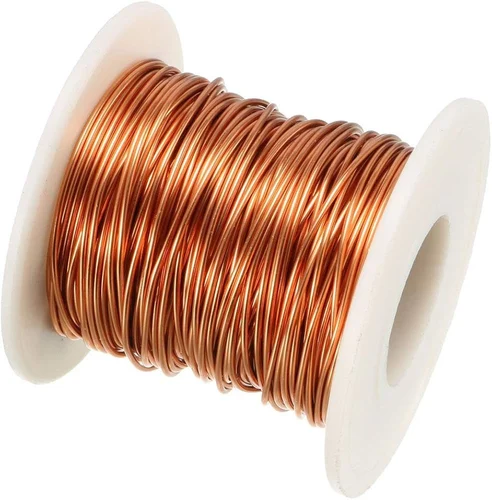

Copper Coil For Plumbing
Manufacturer,Stockist and Exporter of Copper Coil For Plumbing
Copper coils are widely used in plumbing due to their excellent durability and corrosion resistance. They are ideal for transporting hot and cold water in residential and commercial buildings. The flexibility of copper tubing allows for easy installation around corners and tight spaces. Copper’s natural antimicrobial properties help maintain water purity. Its high thermal conductivity ensures efficient heat transfer, making it suitable for both water supply and heating systems. Copper coils are available in various diameters to meet different plumbing needs. Choosing quality copper coils ensures long-lasting performance and minimal maintenance.
One of the major advantages of copper coil plumbing is its reliability. Unlike some plastic pipes, copper does not degrade or warp over time under normal conditions. Copper coils can withstand high pressure and extreme temperatures without leaking or bursting. They are also resistant to UV light and environmental elements, making them suitable for exposed installations. Additionally, copper is recyclable, which makes it an environmentally friendly option. With proper installation, copper plumbing systems can last for decades, providing peace of mind to homeowners and builders alike.
Copper coils for plumbing come in both rigid and flexible forms. Flexible copper tubing is easy to bend and maneuver, reducing the need for joints and fittings. Fewer joints mean fewer potential leak points and faster installation. Rigid copper pipes, on the other hand, provide structural stability and are commonly used in long, straight runs. The choice between flexible and rigid copper coils depends on the specific plumbing project and space constraints. Both options maintain the same durability and resistance to corrosion. Professional plumbers often recommend a combination of both types for optimal performance.
The installation process of copper coils is straightforward but requires proper technique. Tubes are cut to the required length, cleaned, and joined using soldering, compression, or push-fit fittings. Using the correct joining method ensures leak-free connections. It’s important to protect copper pipes from contact with dissimilar metals to prevent galvanic corrosion. Insulating copper coils in cold climates prevents heat loss and reduces the risk of freezing. Proper installation not only extends the life of the plumbing system but also enhances energy efficiency.
Copper coil plumbing systems are highly compatible with modern water heaters and boilers. They can easily handle both hot and cold water supply lines. Due to their thermal efficiency, hot water travels quickly through copper coils, reducing waiting time at taps. This efficiency also lowers energy consumption, contributing to cost savings in the long term. Copper’s durability ensures that even in high-demand households, the plumbing system maintains performance. Furthermore, copper does not impart any taste or odor to the water, preserving water quality.
Maintenance of copper coil plumbing is relatively simple. Regular inspections can detect minor leaks before they become major problems. Cleaning the exterior and checking insulation helps maintain system efficiency. Copper does not require replacement as often as plastic piping, reducing long-term costs. Additionally, copper’s resistance to bacterial growth ensures sanitary water supply. Homeowners appreciate the reliability and low-maintenance benefits that copper coils provide. Even in older homes, copper plumbing often remains functional for decades with minimal upkeep.
When selecting copper coils for plumbing, quality and specifications matter. High-purity copper ensures maximum corrosion resistance and durability. Coils are typically graded based on thickness, flexibility, and tensile strength. Certified products meet international standards, providing assurance of performance. Choosing the right diameter and length of copper coil is crucial for efficient water flow. Proper storage and handling prevent damage before installation. Suppliers often provide detailed specifications to help builders and homeowners make informed decisions.
Copper coils are environmentally friendly and sustainable. They are 100% recyclable without losing quality, reducing the environmental footprint. Recycled copper requires less energy to produce, making it a responsible choice for eco-conscious construction projects. In addition to being recyclable, copper has a long service life, minimizing waste from replacements. Using copper coils contributes to green building certifications and sustainable plumbing practices. Their natural properties make copper a safe material for potable water supply.
Specification Of Copper Coil For Plumbing
| Property | Specification |
|---|---|
| Material | High-purity Copper (C11000, C12200, or ETP Copper) |
| Standard | ASTM B280 / BS EN 1057 |
| Diameter Range | 6 mm – 54 mm (custom sizes available) |
| Thickness / Wall Gauge | 0.5 mm – 2.0 mm |
| Length | 10 m – 50 m per coil (custom lengths available) |
| Surface Finish | Cleaned, tinned, or bare copper |
| Flexibility | Flexible or Rigid |
| Corrosion Resistance | High (suitable for potable water) |
| Operating Temperature | -196°C to +250°C |
| Operating Pressure | Up to 25 bar (depending on diameter and thickness) |
Corrosion resistance is one of the standout features of copper coils. Copper naturally forms a protective oxide layer that prevents further corrosion. Unlike other metals, copper does not rust or produce harmful byproducts in water. This resistance is particularly beneficial in areas with acidic or mineral-rich water. Proper installation with compatible fittings ensures the longevity of the system. Copper coils can last 50 years or more, even under continuous water flow. This reliability makes copper the preferred choice for both residential and commercial plumbing.
Copper coils also offer excellent fire resistance. Unlike plastic piping, copper does not burn or emit toxic fumes in case of a fire. This safety feature makes copper coils suitable for building codes in residential, commercial, and industrial applications. They can also withstand high-temperature water without deforming. The ability to endure extreme heat without damage adds another layer of security to the plumbing system. Copper coils are a dependable option for homes, hospitals, schools, and factories where safety standards are strict.
Flexibility is another advantage of copper coil plumbing. Flexible coils reduce the need for multiple fittings and connectors. This decreases the likelihood of leaks and improves the overall aesthetics of plumbing installations. Bending copper coils around corners or obstacles is easier compared to rigid pipes. Plumbers appreciate the versatility that flexible copper tubing provides during complex installations. The combination of flexibility and durability makes copper a practical solution for modern plumbing challenges.
Chemical Properties Of Copper Coil For Plumbing
| Element | Typical Composition (%) |
|---|---|
| Copper (Cu) | ≥ 99.90% |
| Oxygen (O) | 0.03 – 0.04% |
| Phosphorus (P) | 0.02 – 0.04% |
| Lead (Pb) | ≤ 0.005% |
| Iron (Fe) | ≤ 0.05% |
| Nickel (Ni) | ≤ 0.01% |
| Other Elements | Trace amounts (≤ 0.05%) |
Copper coils are compatible with a wide range of plumbing fittings. Soldered, compression, and push-fit connections provide secure joints. They work seamlessly with brass, bronze, and compatible plastic fittings. Choosing the right connection method ensures water-tight seals and long-term performance. Copper also adapts well to retrofitting older plumbing systems. It can replace corroded or worn-out pipes without extensive renovations. The adaptability of copper coils makes them suitable for both new constructions and remodeling projects.
In addition to water supply, copper coils are used in hydronic heating systems. Their thermal conductivity allows efficient heat transfer for radiant heating applications. Copper coils can also be integrated into cooling and air-conditioning systems where water circulation is required. This multi-purpose use makes copper coils highly versatile in building systems. Contractors value copper for its dual functionality in plumbing and HVAC applications. The combination of durability, efficiency, and versatility gives copper coils a competitive edge in construction projects.
Mechanical properties Properties Of Copper Coil For Plumbing
| Property | Value / Range | Unit |
|---|---|---|
| Density | 8.92 | g/cm³ |
| Tensile Strength | 210 – 250 | MPa |
| Yield Strength | 70 – 210 | MPa |
| Elongation at Break | 25 – 50 | % |
| Hardness (Brinell) | 40 – 60 | HB |
| Thermal Conductivity | 385 | W/m·K |
| Electrical Conductivity | 58 – 60 | % IACS |
| Melting Point | 1085 | °C |
| Operating Pressure | Up to 25 | bar |
